LSRMServer

LSRMServer
LSRMServer software is designed to build the distributed measuring systems which operate in accordance with the client-server scheme.
Version:
Update date: 01-11-2019
System requirements:
Windows 2000, XP, Vista, 7
Download:
Please, login for download

Our company offers the following network solutions:

LSRMServer

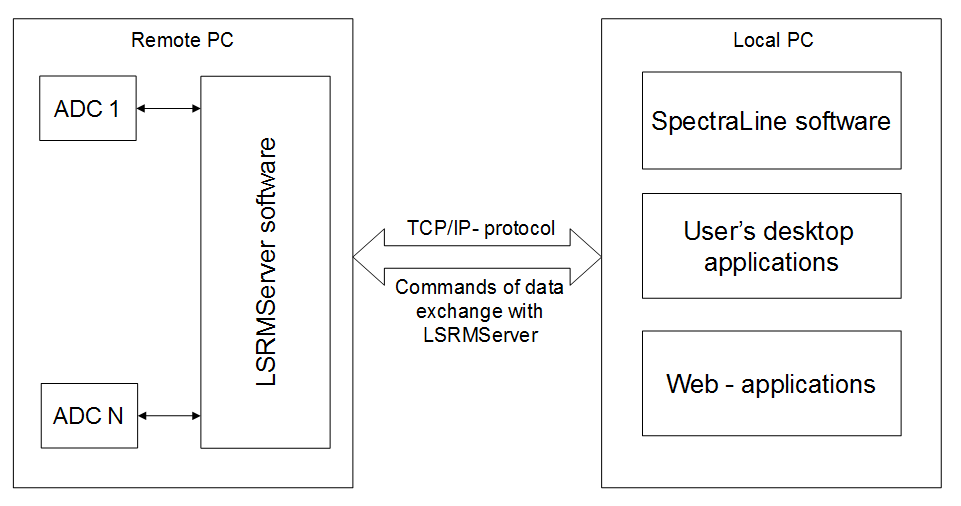

LSRMServer is installed on a remote computer to which one or more ADCs are connected. A local computer with the installed software of SpectraLineXX package and users desktop or web applications controls these ADCs by communicating with the remote computer using the standard TCP/IP network protocol. ADC control and data exchange with LSRMServer are formalized as a universal set of commands.

This scheme allows user to organize works in systems components of which are remoted in space from one another and connected to a local or a global computer network. This is relevant, for example, in the case of systems for measuring highly active samples, when works are carried out in the specialized closed spaces with limited access. This is relevant also for stationary radiation monitoring systems, when single-board computers with low energy consumption are used for measurements, and the inspection points are located at a considerable distance from one another.

More details about LSRMServer functions are presented here.



SpectraLine Expert System

Two or more computers with the installed software of SpectraLineXX package connected to a local or global computer network can be joined in one expert system.

SpectraLine software is installed in the Administrator mode in expert PC for that. The folders with settings of all operator spectrometers are located here. Operator's work station is a spectrometer on the basis of the tablet or PC with SpectraLine software in the Operator mode.

The spectrum measured by operator is sent in special format via e-mail to the expert PC for the detailed analysis, for example if the dangerous radionuclides such as nuclear materials are revealed.

The software application is installed on the expert PC. The spectra sent from operators are received by it and transferred to SpectraLine. It connects to the e-mail address and checks it for the e-mails in this special format. Spectra are processed on the expert PC with the same parameters as on the operators PC.

Download the presentation of SpectraLine expert system.
